Ilerfred installs propane-based refrigeration system for horticultural storage

Ilerfred has developed a refrigeration installation for horticultural storage based on a propane R-290 chiller, a natural refrigerant known for its high energy efficiency.

The system pumps glycol water at -8 ºC to the different services, used as a secondary fluid for cooling the storage chambers. This configuration allows centralised cold production and its distribution to different points within the facility.

The installed air coolers are cubic-type units equipped with EC fans, and include a front-opening access frame that facilitates maintenance and cleaning tasks in environments with dust generation.

The installation includes an air-cooled propane R-290 chiller with a refrigeration capacity of 300 kW.

The glycol water circuit, operating at -8/0 ºC, is composed of two circulation pumps (1+1) that supply the different storage chambers through a ring system, ensuring service continuity.

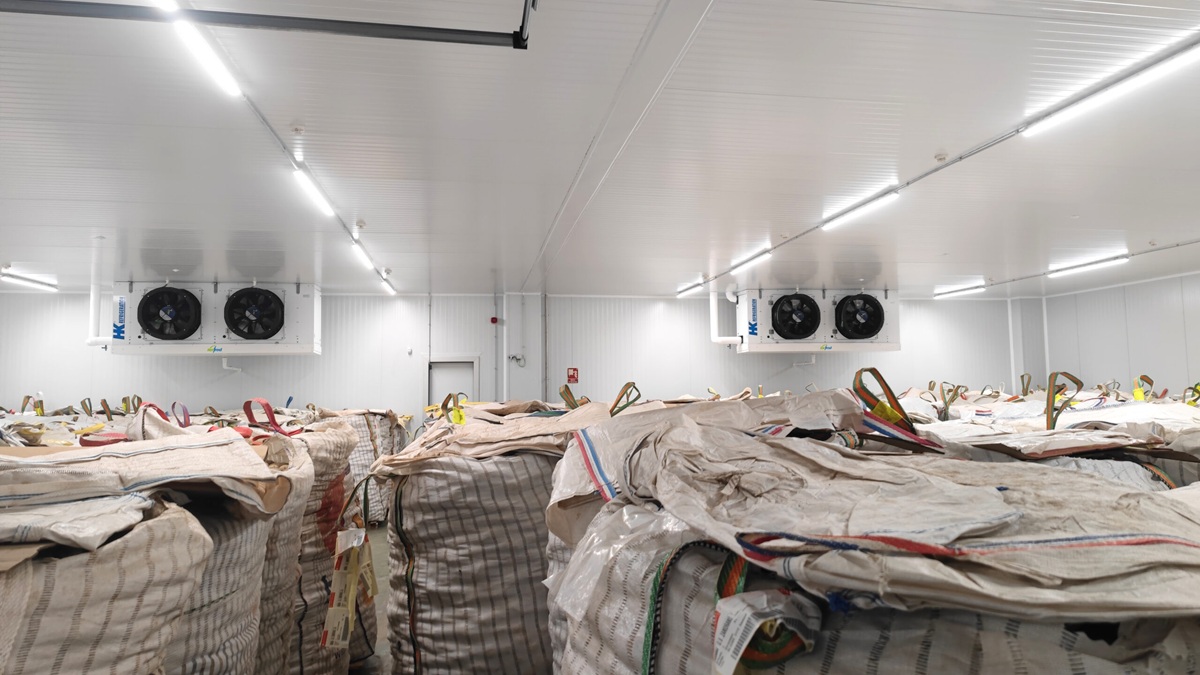

Potato storage in refrigerated chambers

The installation serves a logistics facility with four potato storage chambers of 1,200 m³ each, along with two additional chambers of 600 m³.

These types of installations are designed to maintain controlled temperature conditions during storage, adapted to the requirements of the product.

About Ilerfred

Ilerfred (Industrial Leridana del Frío S.L.) has been active since 1986 in the design, installation and maintenance of refrigeration and controlled atmosphere systems. Based in Lleida, the company operates across Spain through technical offices in Barcelona, La Almunia de Doña Godina, Calahorra, Madrid and Málaga. The group also includes Industrial Cold Generation SL and SIC24, focused on industrial refrigeration and security systems.

The company has more than 4,000 m² of facilities, including workshops, material storage, control and programming laboratories, and dedicated repair areas. It employs over 100 professionals and operates a fleet of fully equipped service vehicles.
